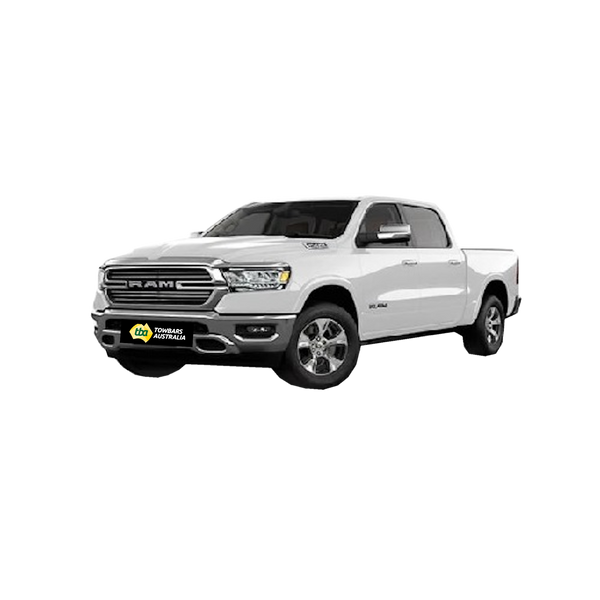

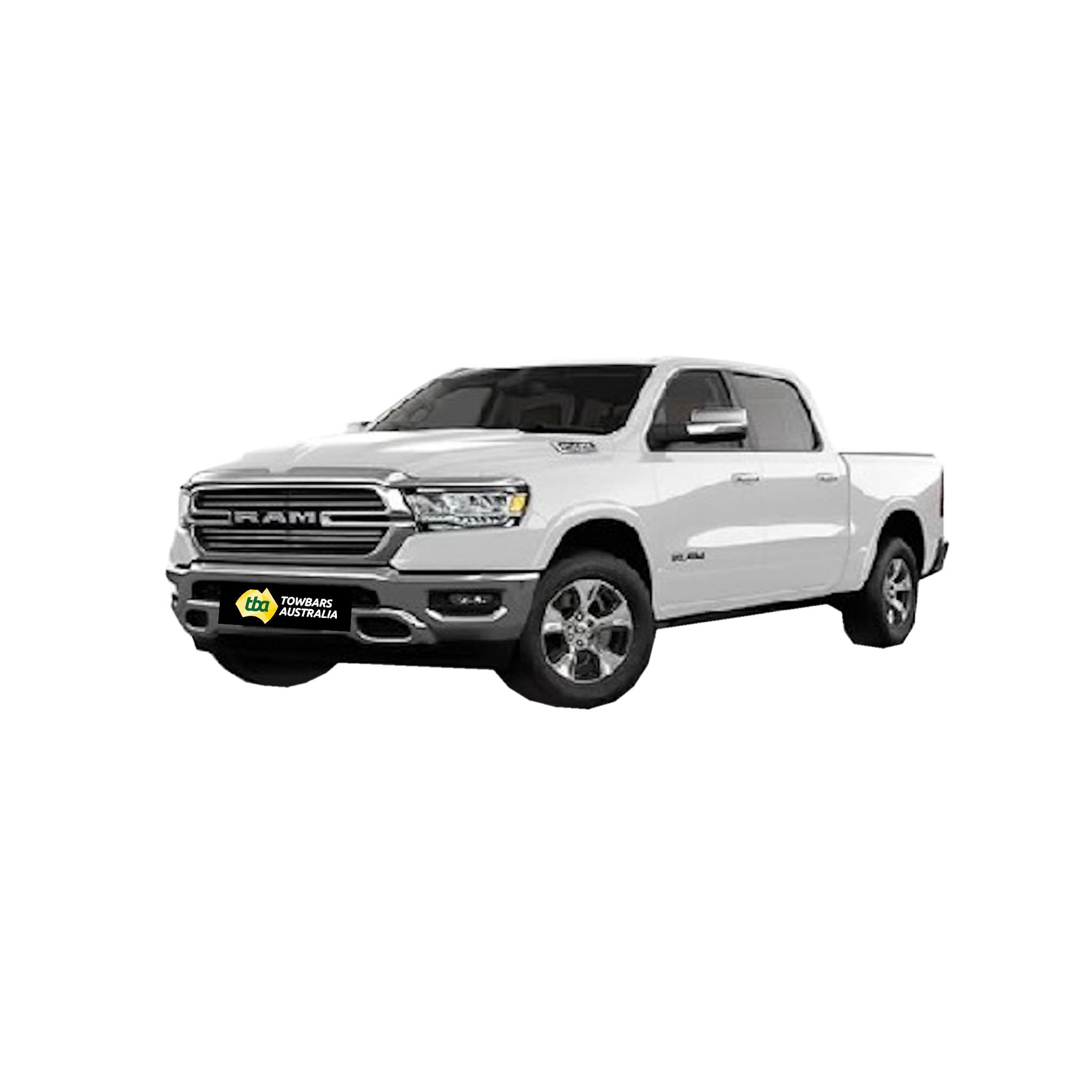

RAM DT 1500 5.7L V8 Hemi

CAT Back Exhaust System - with Twin 4" Shadow Chrome Tips

• Size - Single 3" (76mm) into a Twin 2¾" (70mm)
• Sports Muffler - Yes
• Mandrel Bent Tube
• Stainless Steel Construction
• Fitting Kit Included

WHAT’S IN THE BOX

Front Muffler Assembly
The front muffler assembly bolts to the original flange location of the OE muffler pipe allowing for quick installation without the need for modifications. The single 3" pipe separates into a twin chambered muffler with the use of pressed stainless steel Y-Pipe. Vertical adjustment is made through the muffler hanger which has been e-coated for superior protection.

Over Axle Assembly
Efficient selection of 2¾" over axle pipes allows the exhaust gasses to flow through the system at the same rate, improving performance and sound. A single over axle section coupled with a LHS extension pipe bolts to the rear of the muffler assembly with only 4 bolts. Fitment of the components is a breeze with the Stainless Steel clamps welded in place... just rattle them up for a secure connection.

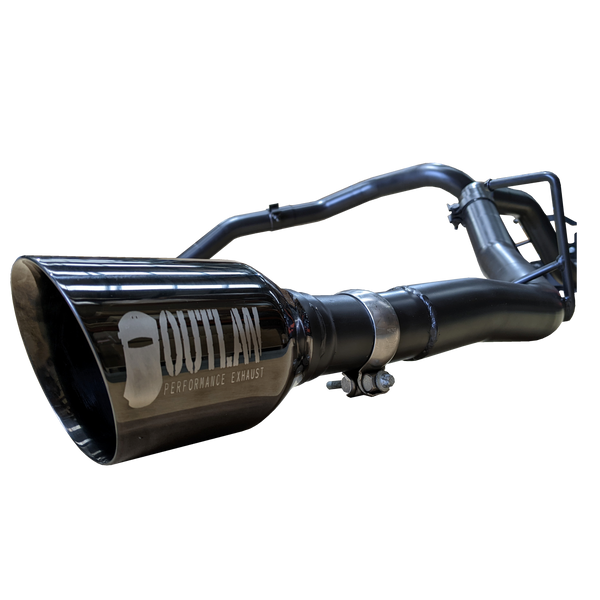

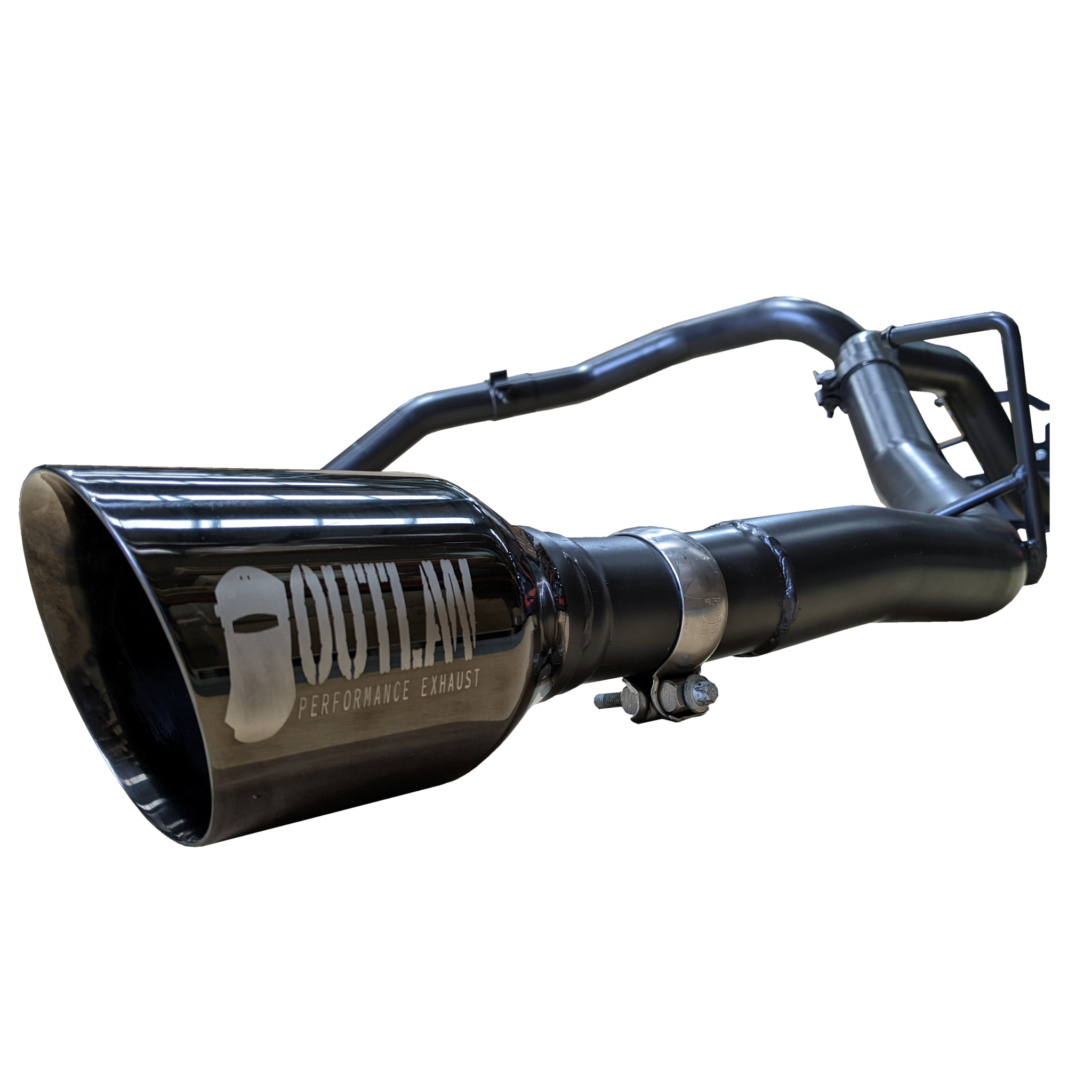

Tailpipes
Ultimate flow and sound performance are achieved with the 2¾" tailpipes that are finished in either Back Chrome or Polished Stainless 4½" exhaust tips. Get the perfect positioning to the bumper by adjusting the ball joint clamps we have used on both outlets.

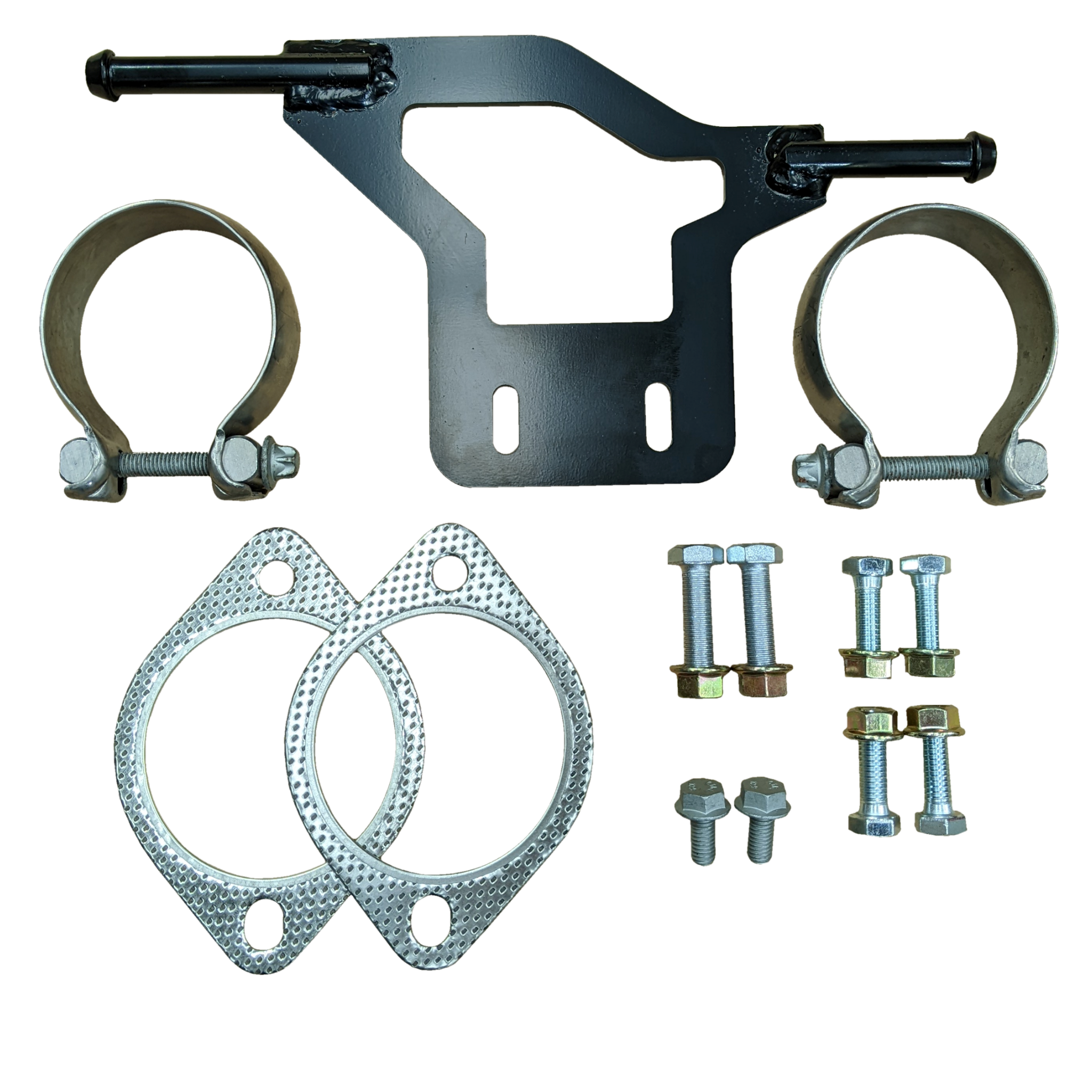

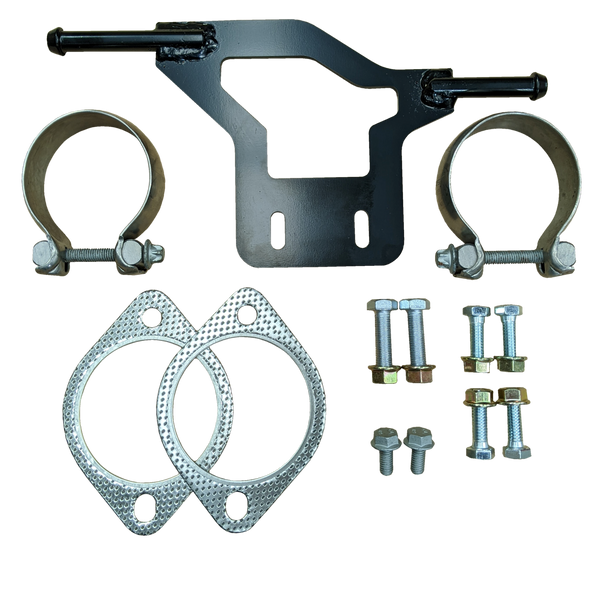

Full Fitting Kit
As with all Outlaw Performance Exhaust kits, our RAM05SS System is supplied with high quality fasteners, gaskets and clamps.
